(Cod produs: POF-GHCP4001)
 |  |

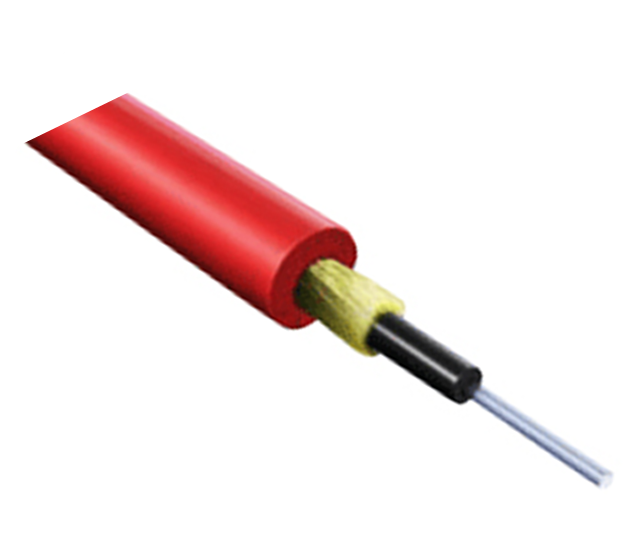

POF-GHCP4001 Chlorinated Polyethylene Jacketed Optical Fiber Cord High-Performance Plastic Optical Fiber
Applications:
- General purpose simplex cable for industrial data applications
- UL VW-1 1581 Style No. 5310 rated
Technical specifications:
| Core Materi |
Polymethyl-Methacrylate |
|
| Cladding Material | Fluorinated Polymer | |
| Core Refractive Index | 1.49 | |
| Refractive Index Profile | Step-index | |
| Numerical Aperture | .50 | |
| Number of Fibers | 1 | |
| Core Diameter | 920 - 1040 µm | |
| Cladding Diameter | 940 - 1060 µm | |
| Approximate Weight | 5.6 g/m |
Jacket
| Material and Color | Chlorinated Polyethylene (black) |  |
| Indication on Jacket | Blue, E89328-A Mitsubishi Rayon AWM 5310 80C VW-1 | |
| Sub-unit Diameter | 0 mm | |
| Outer Diameter | 2.2 ± .07 mm | |
| Fiber Tensile Strength | 70 N |
|
Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Value / Units |
|
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
- 55 ~ 85° C |
|
Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] No Deterioration in Optical Properties [ under 95% RH condition ] |
- 55 ~ 85° C + 75 ° C Max. |
|
Transmission Loss |
(650 nm Collimated Light) [ 25°C 50% RH ] |
0.17dB/m Max. |
|
Transmission Loss |
(650 nm Collimated Light) [ Operating Temperature ] |
0.19 dB/m Max. |
|
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
25 mm |
|
Repeated Bending Endurance |
Loss Increment <1 dB [ Conforms to JIS C 6861 ] |
10,000 Times |
|
Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
70 N |
|
Twisting Strength |
Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ] |
5 Times |
|
Impact Strength |
Loss Increment <1 dB [ Sample Length: 1 m JIS C 6861 ] |
0.4 N.m |
Ordering code:
| Product Code | Product Description | |
| POF-GHCP4001 |

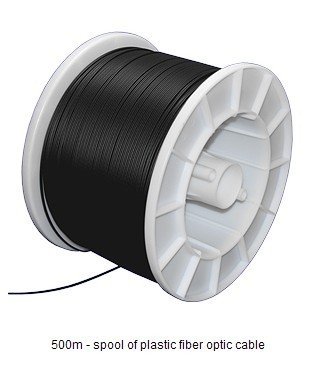

Eska™ Premier Chlorinated Polyethylene Jacketed Optical Fiber Cord High-Performance Plastic Optical Fiber, 500 meters/spool |
(spool) |
