MASTERLINE Extreme Hybrid cabling system is the most efficient and easiest to install product available on the market. MASTERLINE Extreme Hybrid can be installed in half of the time of competitive hybrid solutions based on corrugated coax cable designs. The pre-terminated hybrid cable assembly minimises the quantity of cables running up the mast.

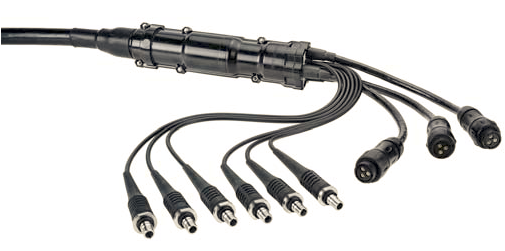

The compact divider splits the optical fiber and DC power cable into individual ruggedised outdoor cables which are linked to the RRHs – either directly or via extension jumpers without the need for bulky mast mount distribution boxes. The RRH jumpers allow an adaptation to different RRH interfaces and therefore make the solution independent from the system vendor’s hardware.
The product is equipped with a robust braided sleeve with pulling eye which protects the break-out cables and withstands an installation tensile load of 2000 N. Once the cable is lifted and attached to the mast, the braided sleeve can be easily removed with standard tools.

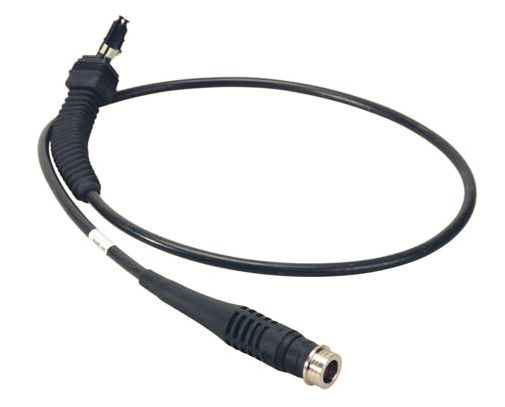

The remote radios are connected with fiber optic jumpers, which are terminated with Q-ODC connectors and RRH compatible interfaces. The copper cable is cut to the correct length and either clamped or connected with a field-terminated power connector.
The shielding of the hybrid cable can be grounded with standard grounding kits. There is no need for special tools or installation processes.

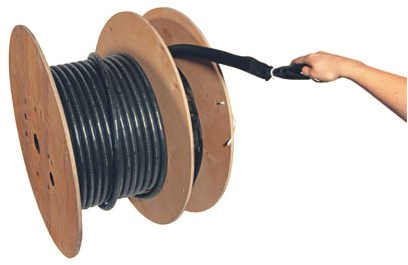

The MLEH is supplied on a double-flange reel which allows for easy and straight-forward unspooling while lifting the cable up the mast.
Special features:
- Hybrid cabling system for up to 9 RRHs
- Flexible hybrid cable with low bending radius and excellent cable routing properties
- Overlength management – cable jacket with ripcords for easy and quick stripping
- Ruggedised plastic enclosure with robust break-out cables
- No special installation tools required
- Robust braided sleeve with pulling eye for cable lifting
- Supplied on double-flange reels for straight forward unspooling

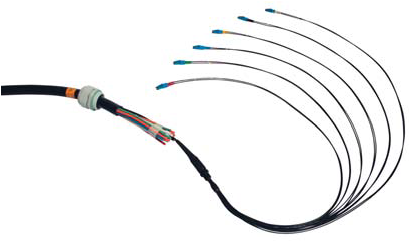

- Fiber optic breakout cables terminated with Q-ODC extensions to connect with Q-ODC RRH jumpers
- Power cable connectorised or blunt cut
Applications:
- FTTA- hybrid cabling systems for remote radio installation
Technical specifications:
Temperature range
- operation
- installation
–40 °C to +75 °C
–25 °C to +65°C
Cable retention force at enclosure
- fiber break-out cable
- power break-out cable
- hybrid cable
500 N
500 N
2000 N
Ingress protection
radio end
base station
IP67
IP65 (with protection tube)
